PREMIUM DESIGN
Inspired by supercars, the R16 has a 3D sculpted body and a two-colour automotive paint finish. It’s the perfect fusion of design and power.
SUPERIOR TEMPERATURE CONTROL PERFORMANCE
The R16 has excellent temperature performance. Even under the most strenuous endurance race the R16 will not reduce or attenuate torque output due to motor overheating. The temperature control system monitors the motor temperature in real time, to avoid any possible temperature abnormalities.
ZERO LATENCY WIRELESS TECHNOLOGY
Seamlessly transmit data and power wirelessly between the steering wheel and the base without any delay.
QUAD CORE ARCHITECTURE
No matter how complex the force feedback calculations get, the unique Quad Core CPUs can reliably process the task at maximum precision.
Product Details

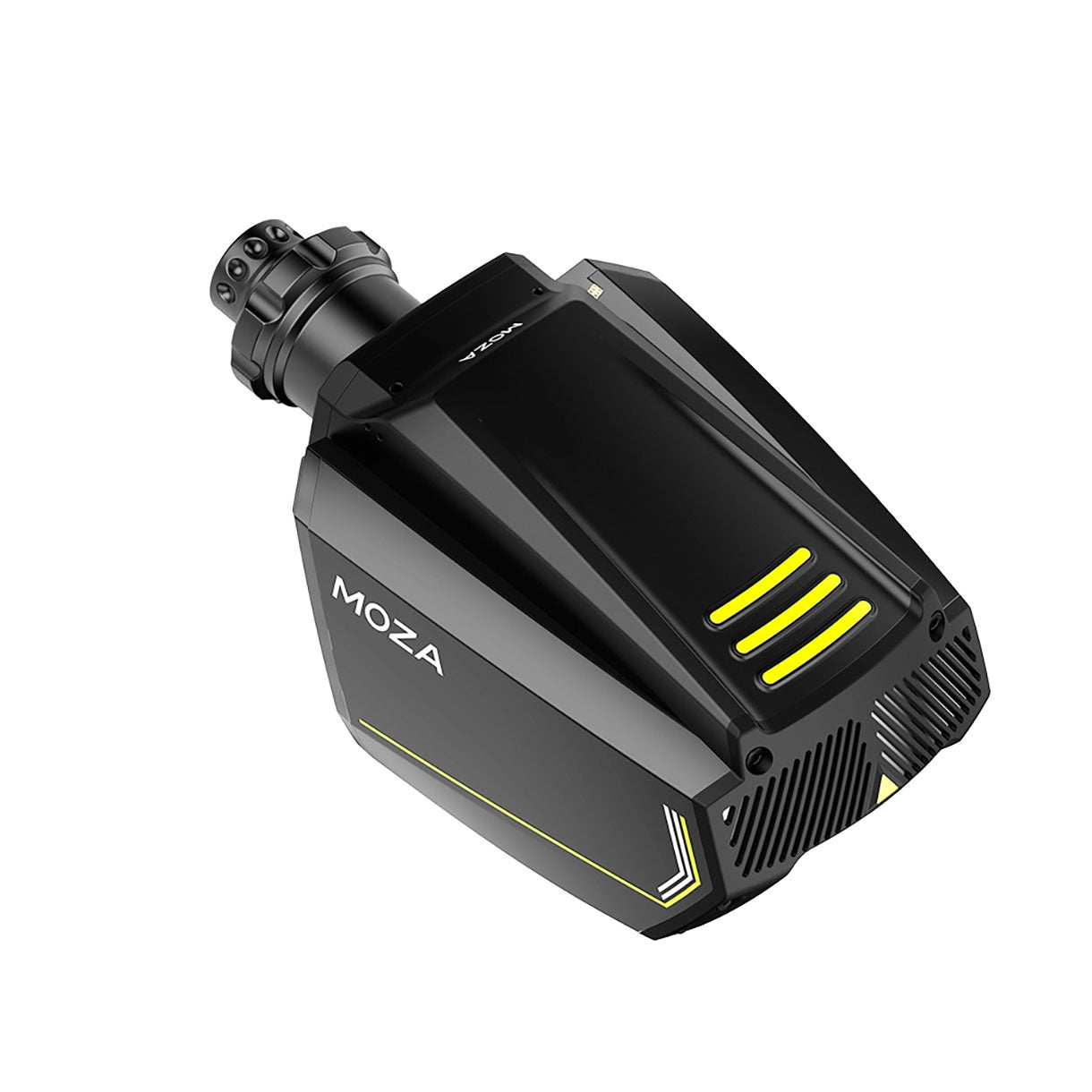

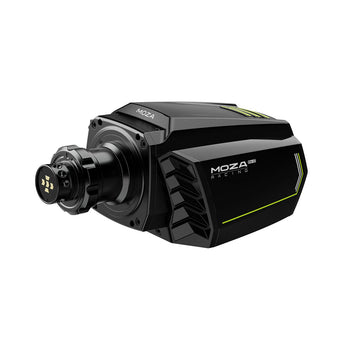

Feel every moment with the MOZA Racing R16 Wheelbase V1.
The R16 makes full use of it’s HUGE 16Nm torque range to provide an accurate and immersive sim racing experience. Offering near-zero levels of torque ripples, notching, or cogging through its optimised motor design, the R16 delivers a clean and rewarding driving experience.
Constructed with a durable aluminium alloy body and sporting a two-tone black and gold finish, this high-performance direct drive wheelbase looks as good as it feels.
Reliable, responsive, and refined. The MOZA Racing R16 is one of the best Direct Drive wheelbases available on the market.
- 16 N·m Maximum
- Supercar Design
- All-Metal Body
- 262,144 Points of Resolution
- Wireless Power & Communication
- APP Control
| General Specifications |
| Platform | PC |
| Driving Type | Direct Drive |
| Maximum Turning Angle | Limitless |
| Cover | Aluminum |
| Colour | Orange |
| Maximum Torque | 16 Nm |
| Size | 13 inch |
| Maximum Power | 360W |
| Input Voltage | 220V AC -> 36V DC |
| USB Refresh Rate | 1000Hz |
| Indicator | Yes |
| Quick Release | Yes |
| Encoder Resolution | 262144 ppr |
| Indicator | Yes |
| Interface | Power Supply, Data, General Interface |
| Accessories | Instructions, Power Supply, USB Cable, Warranty Card, Screw |
| External Devices Adapter | Option |
| Mounting | 4-Hole Pattern on the Bottom, Side Mounting Support with Special BRKT |
| Mounting Bracket | Bottom Angle Adjustment Bracket/Side Fixing Bracket |
| Table Clamp | Optional |
| Side Mounting | Yes |
| Emergency Stop | Optional |
| L x W x H | 327mm x 170mm x 130mm |
| Mass(ALL) | 8.9kg |
| APP Function | Yes |
| Shifting Indicator Light | Yes |
- Wheel Base R16
- DC power supply/supplies
- Power cable
- USB cable
- Quick start guide & Warranty card
